Transition Fittings

Weld End Transition Fitting Bevelled

DETAILS:

Polyethylene fittings are made from medium density polyethylene pipe (MDPE) which is a 2406/2708 resin; this is designed for gas distribution and gas services. They can also be made from a high density polyethylene pipe (HDPE) which is a PE100/PE4710 resin; this is used for gas gathering, water and sewer lines.

Transition Fittings Product Listing

WELD END TRANSITION FITTINGS BEVELLED

Weld End Transition Fitting Bevelled

  • for all P.E. to steel joints
  • 100% pressure tested welds
  • available ½” CTS – 12” IPS
  • CSA approved
  • Canadian made – Canadian owned

CLICK BELOW TO DOWNLOAD OR PRINT

ID CONTROLLED TRANSITION FITTINGS

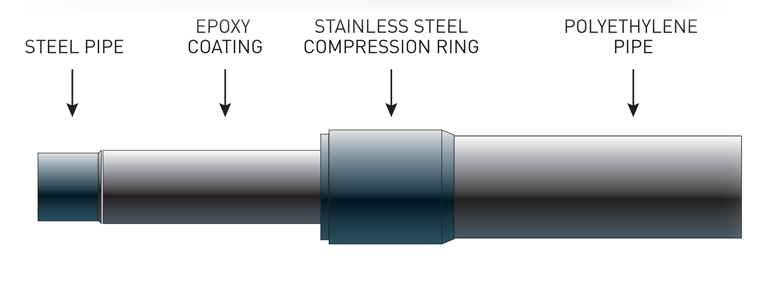

Inside Diameter Transition Fitting

Inside Diameter Transition Fitting

Transition service risers are used to carry out the transition from plastic pipe below grade to steel pipe above grade. Since the steel pipe is the gas carrier below grade, an anode is supplied to provide cathodic protection and prevent corrosion.

  • choice of lengths – straight or pre-bent
  • sizes up to 4”
  • CSA approved
  • custom manufacturing available
CLICK BELOW TO DOWNLOAD OR PRINT

WATER FITTINGS

  • flange joint can be butt fused to pipe
  • serrated sealing surface for better gasket retention
  • steel back-up ring provides uniform pressure over
    the entire sealing surface to prevent leaking
  • Back-up ring is fitted to the adapter before fusion,
    so external fusion bead removal is not required
  • Available in 2” – 24”, all SDR’s
