Plastic Pipe Fittings & Accessories

SERVICE RISERS

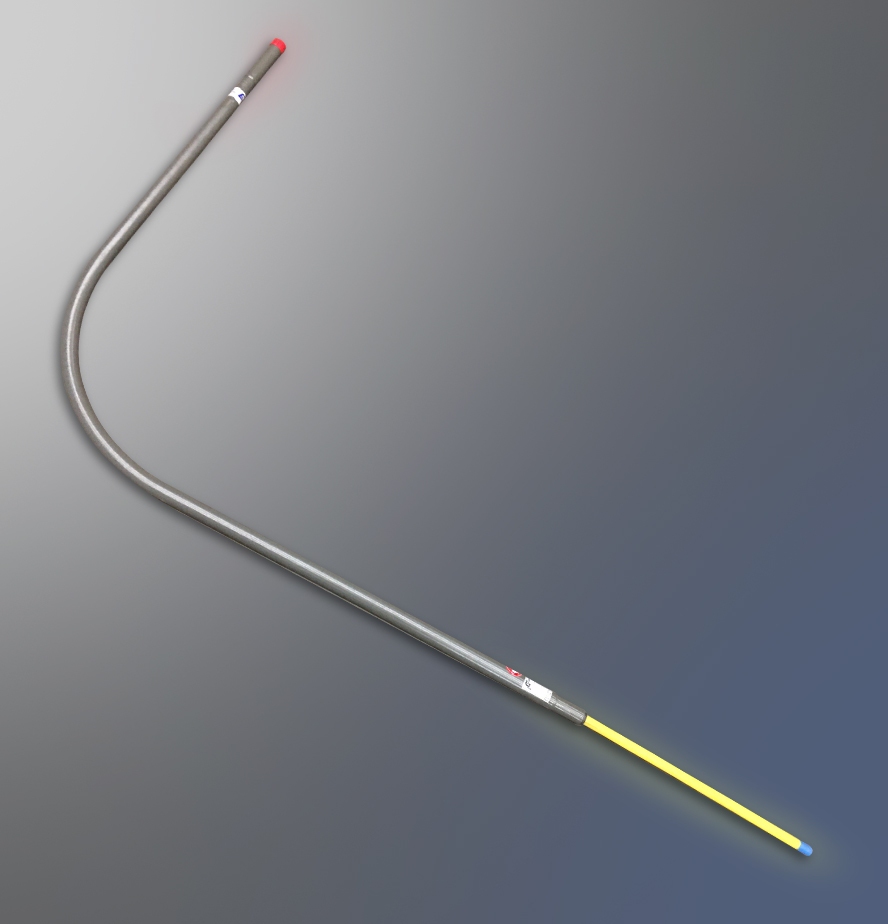

• choice of lengths – straight or pre-bent
• sizes up to 4”
• CSA approved
• custom manufacturing available

Transition Service Riser

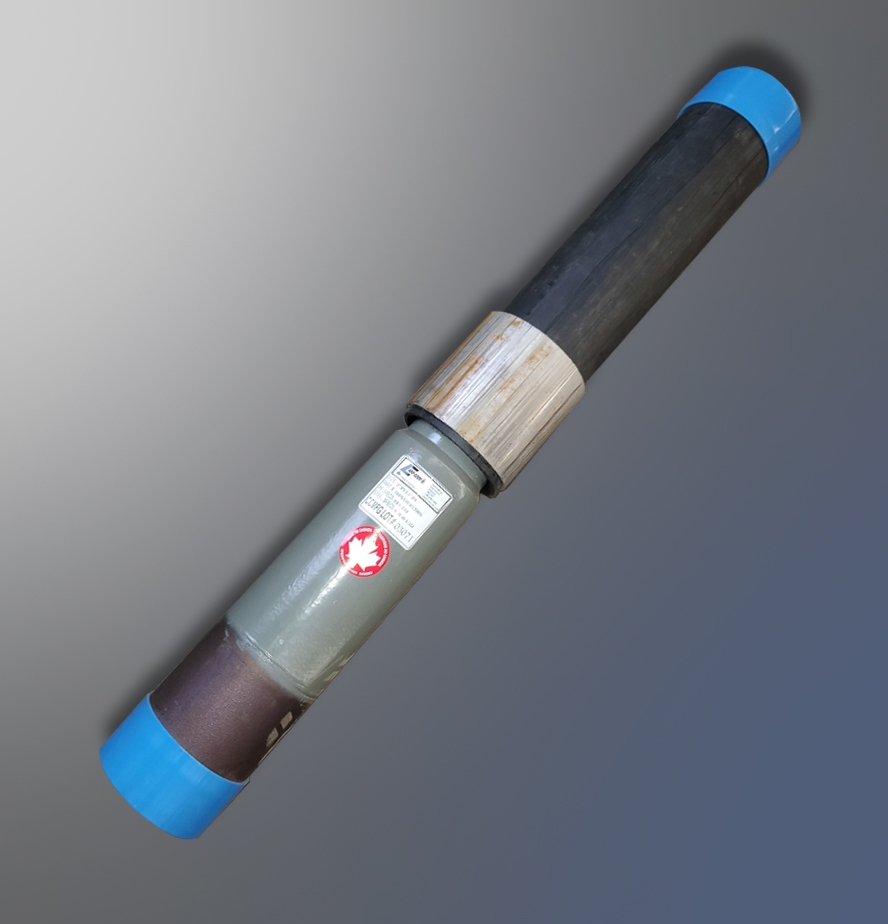

Transition service risers are used to carry out the transition from plastic pipe below grade to steel pipe above grade. Since the steel pipe is the gas carrier below grade, an anode is supplied to provide cathodic protection and prevent corrosion.

Anodeless Service Riser

Anodeless Service Risers, like transition service risers, provide the transition from steel to plastic pipe, however, an Anodeless service riser will not have gas being carried through steel below grade and thus has no need for an anode to protect against corrosion.

FLANGE ADAPTER & BACKUP RING

• flange joint can be butt fused to pipe
• serrated sealing surface for better gasket retention
• steel back-up ring provides uniform pressure over
  the entire sealing surface to prevent leaking
• Back-up ring is fitted to the adapter before fusion,
  so external fusion bead removal is not required
• Available in 2” – 24”, all SDR’s

SOCKET FITTINGS

+ Durable

+ Leak Tight

+ Excellent Flow

+ Easy Install

+ Light Weight

+ Impact Resistant

+ Fusibility

+ Corrosion Resistant

+ Chemical Resistant

+ Life Cycle Cost

+ Toughness

+ Environmental

SOCKET TEE

SOCKET CAP

SOCKET ELL 90°

 SOCKET COUPLING

SOCKET REDUCER COUPLING

SOCKET REDUCER

BUTT FITTINGS

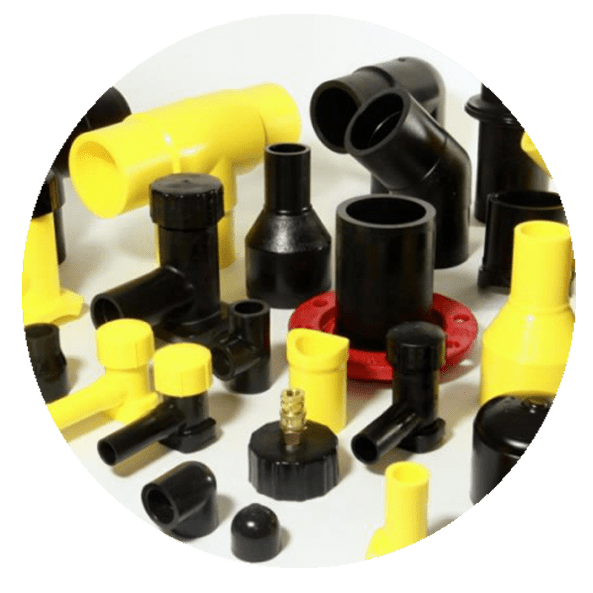

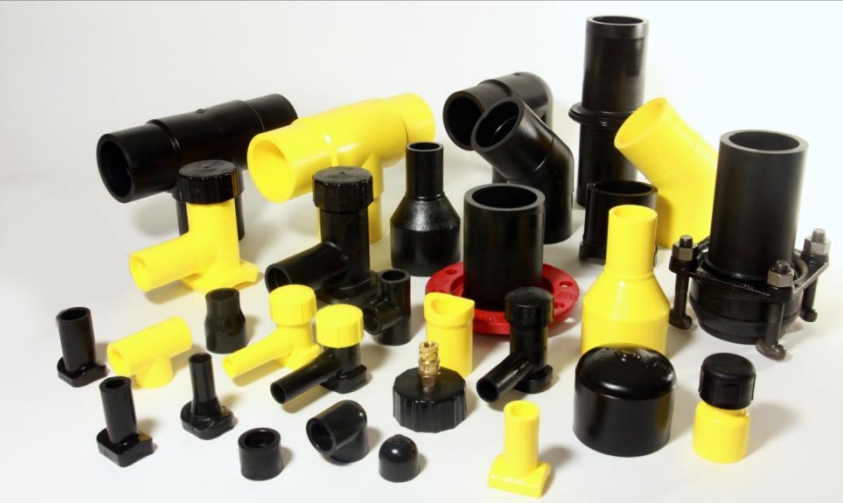

• injection molded from medium or high density polyethylene resin
• ½” CTS – 12” IPS
• full range of SDR’s
• flange adapters and backup rings also available

BUTT CAP

BUTT TEE

BUTT REDUCER

BUTT ELL 90°

BUTT ELL 45°

BRANCH SADDLES

+ Durable

+ Leak Tight

+ Excellent Flow

+ Easy Install

+ Light Weight

+ Impact Resistant

+ Fusibility

+ Corrosion Resistant

+ Chemical Resistant

+ Life Cycle Cost

+ Toughness

+ Environmental

SADDLE SIZE         X         OUTLET SIZE

 2”, 3”, 4”, or 6” IPS            2” IPS
4”, or 6” IPS                      3” IPS
6” IPS                              4” IPS

TAPPING TEES & SERVICE SADDLES

• saddle sizes 1 ¼” IPS through 8” IPS
• outlet sizes ½” CTS through 1 ¼” IPS
• available with socket fusion or butt fusion outlets
• tapping tee has buttress threads to lock the cap in place
• high volume tapping tees available in saddle sizes 2”-8” IPS with 2” outlet
• cutter wrenches available

COMPRESSION OR STAB FITTINGS

• coupling, reducing coupling, 90° elbow, 3-way tee, and end cap
• forming tool is used to prepare pipe end for insertion into fitting
• sizes ½” CTS through 2” IPS

COMPRESSION FITTINGS

STAB REPAIR COUPLING

ELIMINATOR TEE

• for creating a branch from a plastic main without fusing
• for main sizes 1” -6” and outlet sizes 3/8” – 2”
• coupon retaining punch sizes ½” – 1 ½”
• drive wrench available

POLY VALVES

Plug Valve

• stem, plug and adaptor are combined into a single part of molded high-strength plastic
• one piece polyethylene body
• can be joined to pipe using butt fusion, socket fusion or mechanical connection
• available in ½” CTS – 1 ¼” IPS

Ball Valve

• constructed to withstand field abuse
• dual stem seals
• molded polyethylene body
• can be joined to pipe using butt fusion, socket fusion, or mechanical connection
• available in ½” CTS – 12” IPS

VALVE BOXES, CURB BOXES

• cast iron rings and covers
• sizes from ½” to 8” in variety of heights

VALVE BOX

CURB BOX

ELECTROFUSION FITTINGS

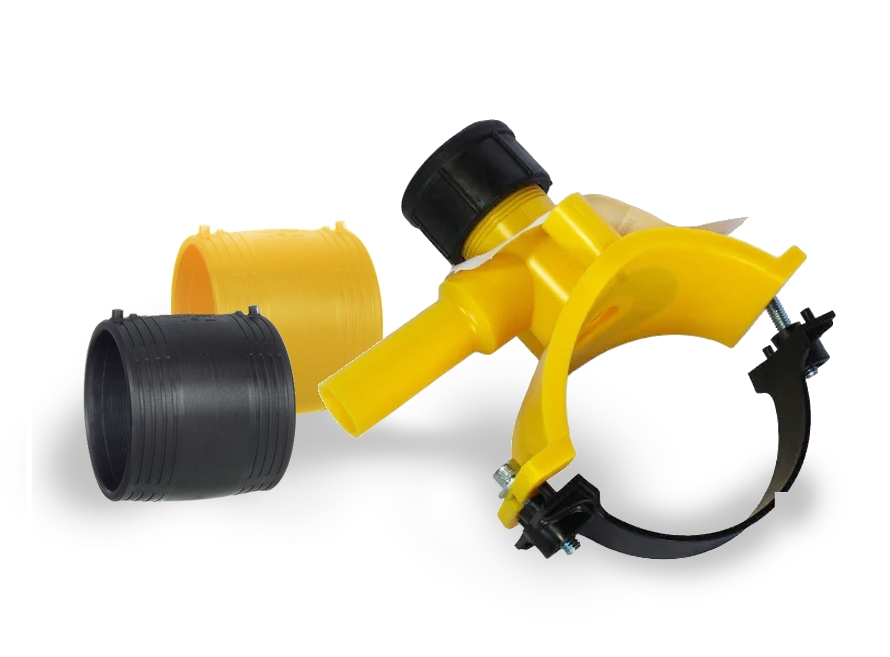

Electrofusion fittings are a popular choice for pipe joining, leak patching, and are especially useful in confined spaces. Electrofusion saddles are available with an IPS outlet and threaded options are available in Stainless Steel or brass.

• one socket 90° elbow and one spigot 90° elbow required to produce one 180° U-Bend
• injection molded in black HDPE 3408
• available in sizes ¾” – 1 ¼” IPS

FABRICATED FITTINGS

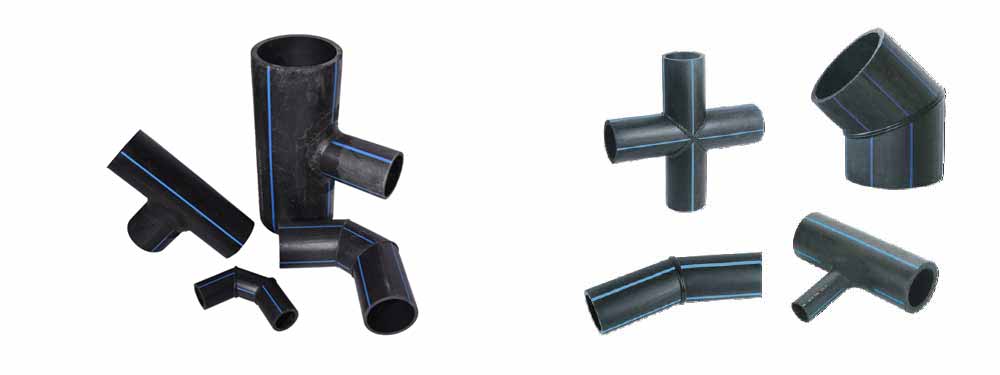

• fittings have a large outside diameter and extremely thick wall yet maintain the requested inside diameter and pipe end configurations
• welds are notched and fused providing no stress on the back of the fitting
• standard and full pressure are available in 2” IPS – 14” IPS, SDR 5 – 21
• ID controlled are available in 2” IPS – 12” IPS, SDR 5 – 21
• Custom sizes, SDR’s and angles are available upon request

STANDARD
– Made using actual dimension ratio polyethylene
– 75% operating pressure

FULL PRESSURE
– Made using one full dimension ratio thicker polyethylene with the same outside dimensions and reduced internal dimensions
– Full pressure rating

ID CONTROLLED
– Made using one full iron pipe size with similar internal dimensions
– Full pressure rating

DEBRIS CAPS

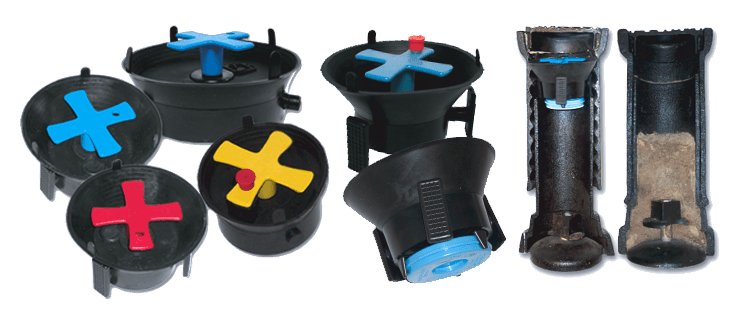

• debris caps protect valves from dirt, debris, and damage
• reduces response and repair time during emergency line breaks or leaks
• optional locking device is available to prevent unauthorized operation of valve
