Manufactured equipment used to heat fuse Polyethylene piping systems. Joining methods would be socket welding, Butt welding, and Electrofusion.

Can-Con’s rental equipment is properly maintained to the highest manufacturer’s standards and ready to perform. we ensure the equipment is constantly maintained to be in the best condition possible – all parts of the machine, from top to bottom, are checked.

Equipment & Tools Catalog

SQUEEZE TOOLS

SQUEEZE TOOLS

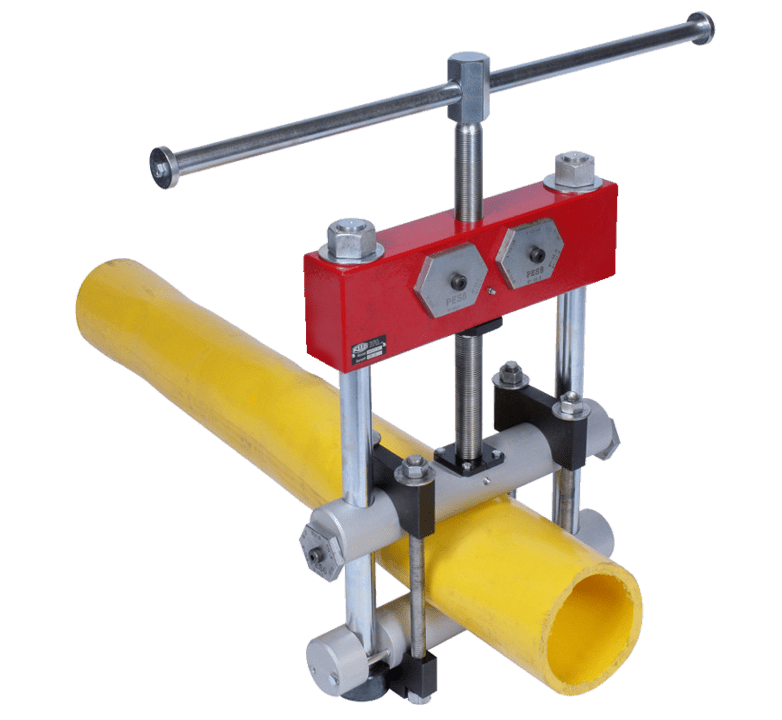

Squeeze tool

PolySqueez

  • for plastic pipe
  • provides quick emergency shut-off until permanent repairs can be made
  • swing-out lower jaw for use in smaller trenches
  • easy to handle and transport
  • ½” to 16” pipe sizes
  • smaller units operate mechanically, larger units use a hydraulic hand pump

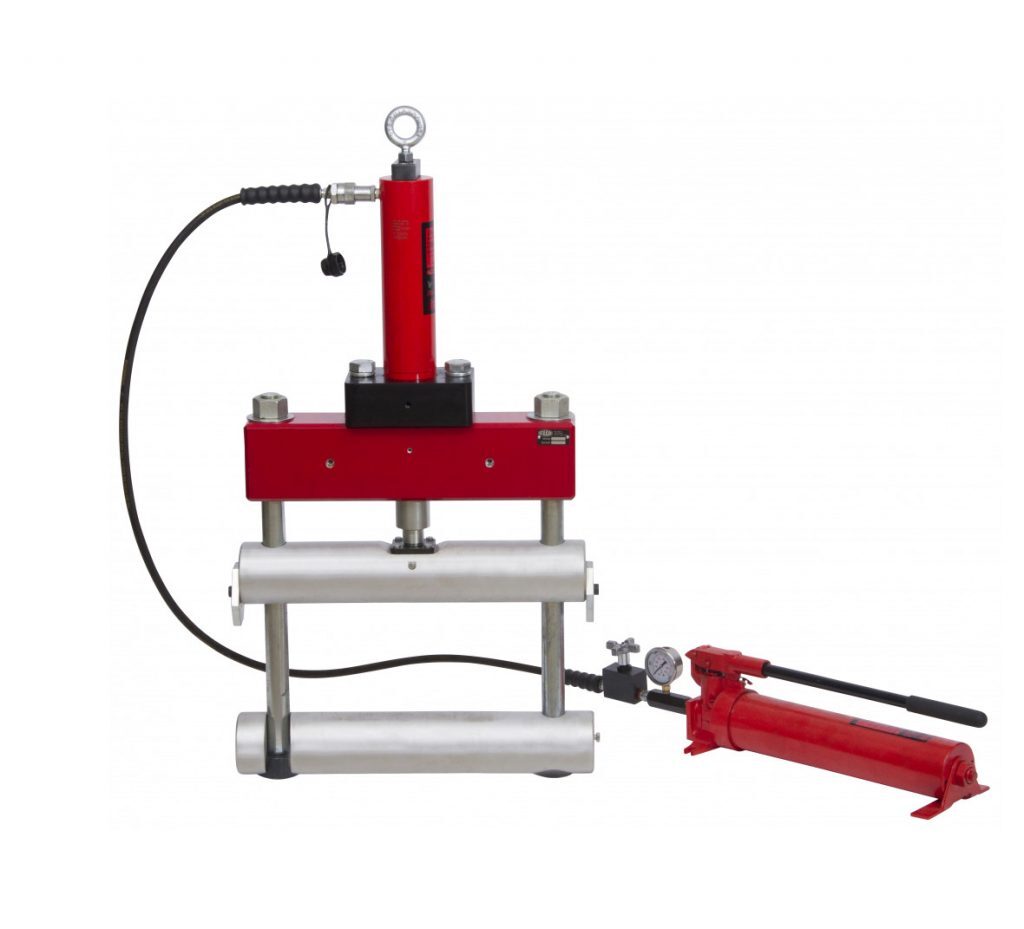

SteelSqueez

  • for steel pipe
  • swing-out lower jaw for use in smaller trenches
  • lightweight
  • ¾” to 8” pipe sizes
  • all models are hydraulic

CUTTERS

CUTTERS

  • fittings have a large outside diameter and extremely thick wall yet maintain the requested inside diameter and pipe end configurations
  • welds are notched and fused providing no stress on the back of the fitting
  • standard and full pressure are available in 2” IPS – 14” IPS, SDR 5 – 21
  • ID controlled are available in 2” IPS – 12” IPS, SDR 5 – 21
  • Custom sizes, SDR’s and angles are available upon request

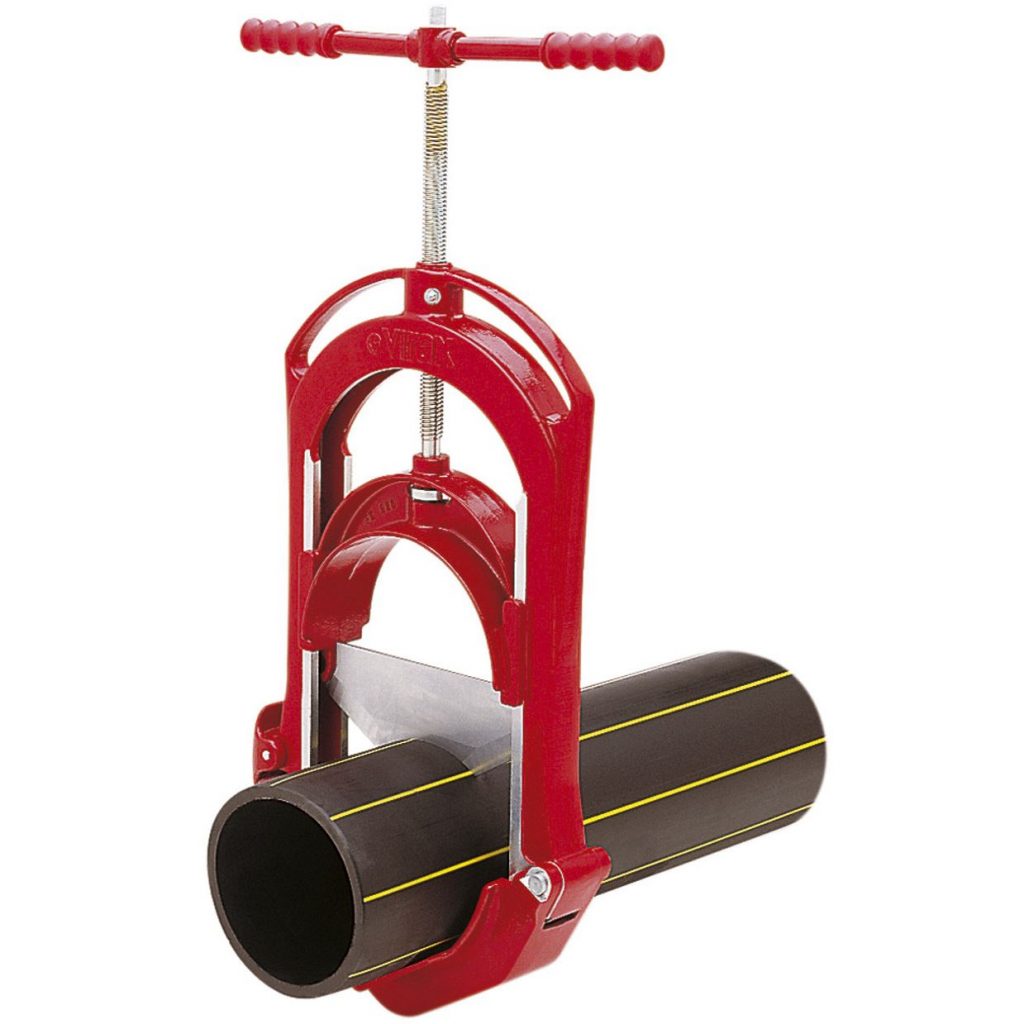

Guillotine Pipe Cutter

  • Strong but lightweight
  • Accurate on 8” medium and high density plastic pipe
  • Non-stick coated blade

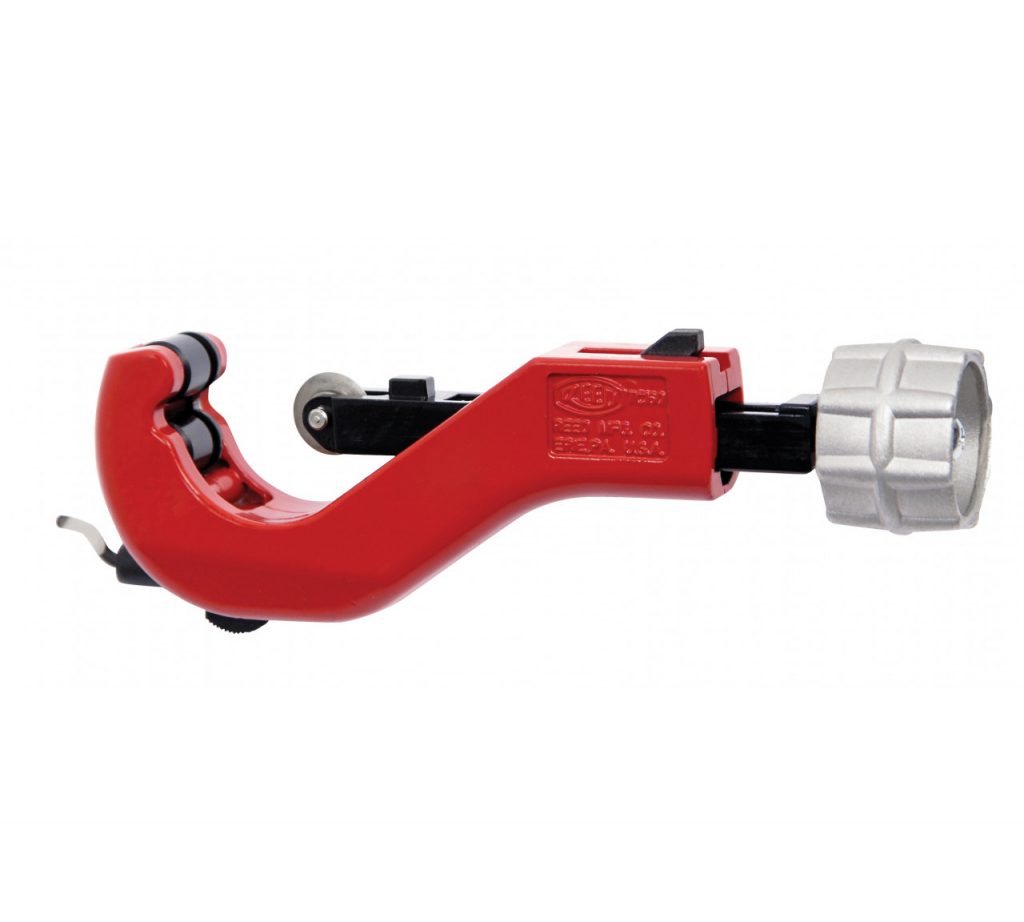

Quick release Tubing Cutter

Quick release Tubing Cutter

  • will cut a wide variety of plastic pipe and tubing
  • excellent tracking and easy cutting
  • 1 ¼” – 6”

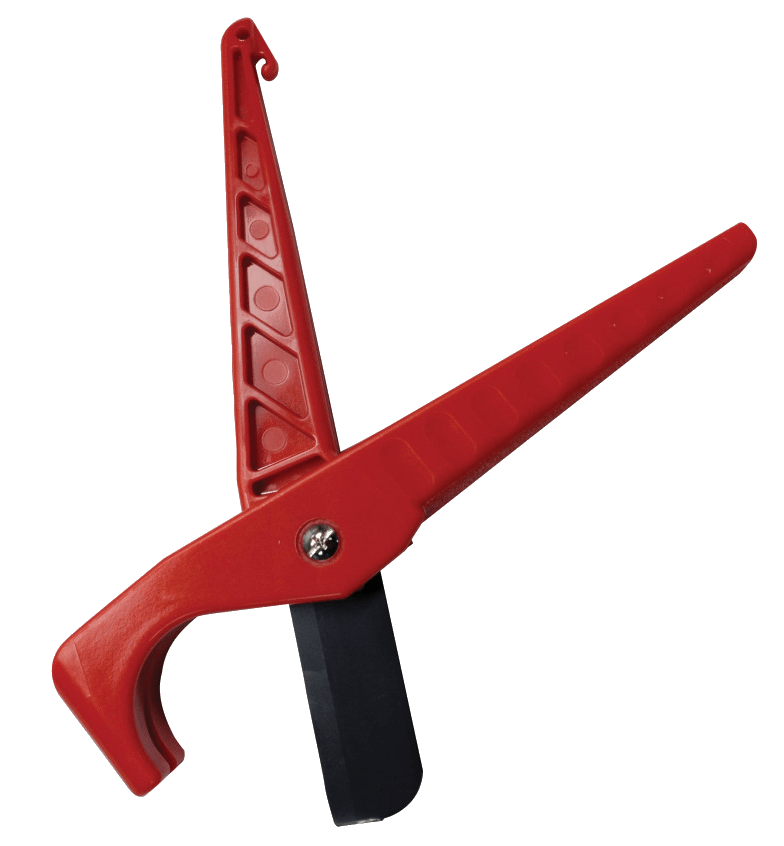

Shears for Plastics

  • a variety of styles available from small cutters for one hand operation to large leverage cutters up to 2” IPS
  • steel blades are easily re-sharpened or replaced

BUTT FUSION MACHINES

BUTT FUSION MACHINES

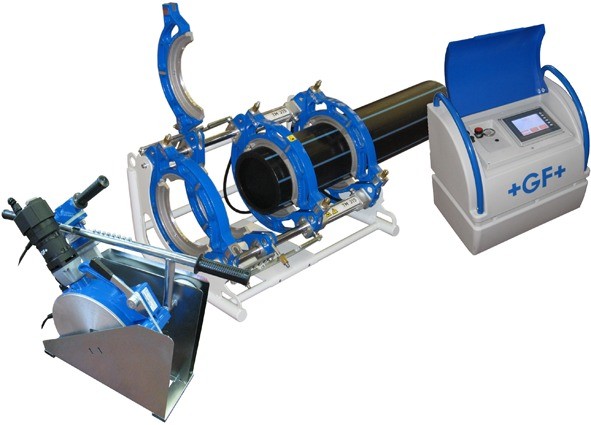

butt fusion machine

GF Piping Systems offers mechanical, hydraulic and CNC-guided fusion machines for on site constructions and the workshop. The fusion areas of the pipes and fittings are heated to fusion temperature and joined by means of mechanical pressure, without using additional materials. The fusion parameters is coordinated to create a homogenous joint with consistently high welding quality. GF Piping Systems butt fusion machines minimize distortion, maintain a high level of stability and keep the butt fusion process as short as possible. All heating elements are exceptionally reliable and the units are easy to operate.

CNC 4.0 Butt Fusion Machines

TM 160 CNC

+ Butt fusion machine join PE, PP and PB pipes and fittings for pressure piping systems on building sites and in trenches.

+ Hydraulically operated with automatic CNC control unit.

+ Includes transport packaging (wooden crate). Reduction clamp inserts and other accessories must be ordered separately.

+ Base machine

+ High precision design. Rigid and sturdy machine frame.

+ Good accessibility thanks to 35° inclination.

+ The moving (sliding) 3rd clamp allows easy and time-saving clamping of bends or tees without need of additional tools.

+ Clamps are hinged on top and tilt. Whenever necessary any of the four clamps can be quickly removed.

+ Double-sided heating element designed for easy insertion and removal to ease change-over process.

+ Distance control (potentiometer) mounted in base machine allows safe control the entire work process.

+ Weight: TM 160 = 22 kg, TM 250 = 47 kg, TM 315 = 53 kg

TM 250 CNC

  • + Butt fusion machine join PE, PP and PB pipes and fittings for pressure piping systems on building sites and in trenches.

    + Hydraulically operated with automatic CNC control unit.

    + Includes transport packaging (wooden crate). Reduction clamp inserts and other accessories must be ordered separately.

    + Base machine

    + High precision design. Rigid and sturdy machine frame.

    + Good accessibility thanks to 35° inclination.

    + The moving (sliding) 3rd clamp allows easy and time-saving clamping of bends or tees without need of additional tools.

    + Clamps are hinged on top and tilt. Whenever necessary any of the four clamps can be quickly removed.

    + Double-sided heating element designed for easy insertion and removal to ease change-over process.

    + Distance control (potentiometer) mounted in base machine allows safe control the entire work process.

    + Weight: TM 160 = 22 kg, TM 250 = 47 kg, TM 315 = 53 kg

TM 315 CNC

  • + Butt fusion machine join PE, PP and PB pipes and fittings for pressure piping systems on building sites and in trenches.

    + Hydraulically operated with automatic CNC control unit.

    + Includes transport packaging (wooden crate). Reduction clamp inserts and other accessories must be ordered separately.

    + Base machine

    + High precision design. Rigid and sturdy machine frame.

    + Good accessibility thanks to 35° inclination.

    + The moving (sliding) 3rd clamp allows easy and time-saving clamping of bends or tees without need of additional tools.

    + Clamps are hinged on top and tilt. Whenever necessary any of the four clamps can be quickly removed.

    + Double-sided heating element designed for easy insertion and removal to ease change-over process.

    + Distance control (potentiometer) mounted in base machine allows safe control the entire work process.

    + Weight: TM 160 = 22 kg, TM 250 = 47 kg, TM 315 = 53 kg

CNC Automated Butt-Fusion Machines

GF 400

View Brochure

GF 500

View Brochure

GF 630

View Brochure

BUTT FUSION EQUIPMENT

BUTT FUSION EQUIPMENT

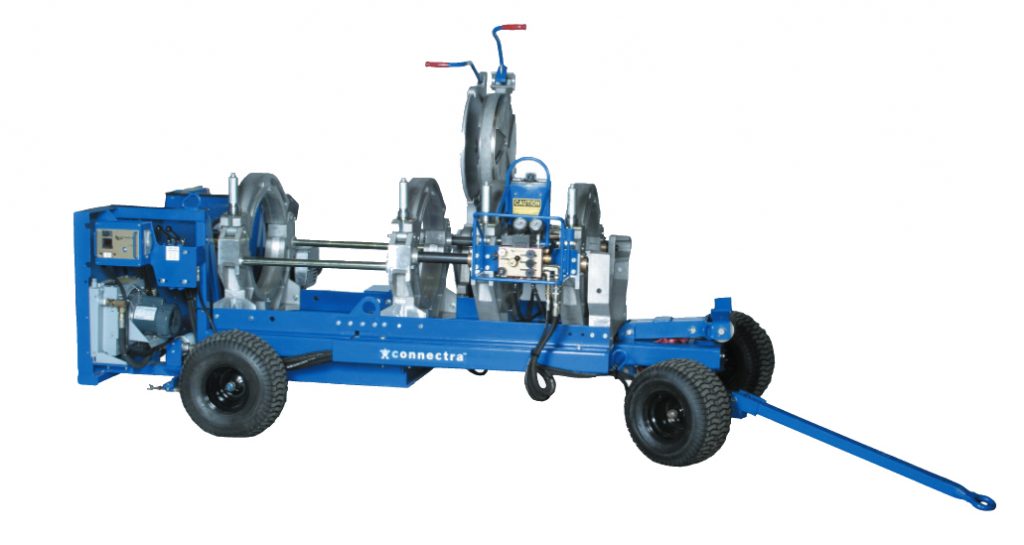

BUTT FUSION Machine

CentrFuse28le

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

CentrFuse28le

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

CenterFuse618

  • for 6” IPS through 18” DIPS and 160mm through 500mm polyethylene pipe for gas, water, wastewater, mining, paper and pulp, and high-tech
    applications
  • pipes can be joined at two speeds to allow fusion of the full spectrum of pipe brands and sizes
  • hydraulic facer is narrow, lightweight, and pivots from the removable clamping unit
  • three pressure settings: facing, heating, and fusion
  • automatic pipe-drag compensation

CentreFuse 1442

  • for 6” IPS through 18” DIPS and 160mm through 500mm polyethylene pipe for gas, water, wastewater, mining, paper and pulp, and high-tech
    applications
  • pipes can be joined at two speeds to allow fusion of the full spectrum of pipe brands and sizes
  • hydraulic facer is narrow, lightweight, and pivots from the removable clamping unit
  • three pressure settings: facing, heating, and fusion
  • automatic pipe-drag compensation

Model 2420

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

Model 820IP (Insulated Pipe)

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

Model 820CQ (Closed Quarters)

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

Model 820HP (Hand Pump)

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

Model 1420EP (Electric Power)

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

Model 1420CQ (Closed Quarters)

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

Model 1420HP (Hand Pump)

  • for 2” through 8” IPS, 50mm through 200mm, and 4” through 8” DIPS pipe sizes
  • 2 stationary and 2 moving jaws provide versatility
  • removable outer stationary jaw for special fusing operations
  • unit is easily detached from the cart
  • automatic pipe-drag compensation

SOCKET FUSION EQUIPMENT

SOCKET FUSION EQUIPMENT

Heater Tools

  • for use with “bolt-on” heater faces for socket and saddle fusion
  • fast and efficient
  • adjustable temperature from 100 to 550° F (38 to 288 ° C)
  • operates on 120VAC

TD-1A Heater Tool

  • 800 Watts
  • for use with ½” through 2” socket faces and all tapping tees, combination tapping-tees, high volume multi-saddles and high-volume punch tee faces

TD-2 Heater Tool

  • 1650 Watts
  • for use with ½” through 4” socket faces and all tapping tees, combination tapping-tees, high volume multi-saddles, high-volume punch tees, and all branch fittings

Socket Fusion Tools

Socket Faces

  • bolt to TD-1A and TD-2 heater tools for fusion socket type couplings and fittings
  • coated surfaces are stick-resistant

Cold Rings

  • for rounding the pipe end and assuring correct depth engagement of the heater face and socket fitting
  • for pipe sizes ½” CTS through 2” IPS
  • clam style available for sizes 1 ¼” through 4” IPS

Socket Fitting Holder

  • provide grip and leverage on a socket fitting

Depth Gauges

  • for determining fusion depth
  • for pipe sizes ½” CTS through 4” IPS

Combination Chamfering Tool/Depth Gauge

  • chamfers and locates the cold ring the proper distance from the pipe end
  • for pipe sized ½” CTS through 2” IPS

Chamfering Tools

  • chamfers the outside edge of the pipe end in preparation for socket fusion
  • the chamfer allows heater faces and socket fittings to be easily pushed onto the pipe
  • for pipe sizes 3” and 4” IPS

Auxiliary Handles

  • attach to TD1A and TD-2 heater tools for more leverage and easier handling

Fusion Faces

Tapping-Tee Face

  •  bolts to TD-1A and TD-2 heater tools for joining tapping tees to the sidewall of pipe
  • for pipe sizes 1 ¼” through 8” IPS

Combination Tapping-Tee Face

  • bolts to TD-1A and TD-2 heater tools and combines the tapping tee face with a socket fusion face
  • available for pipe sized 1 ¼” x ½” CTS through 4” x 1” IPS

High-Volume, Multi-Saddle Face

  • bolts to TD-1A and TD-2 heater tools for joining high-volume, multi-saddle fitting to the sidewall of pipe
  • for pipe sizes 1 ¼” IPS through 8” IPS

High-Volume Punch-Tee Face

  • bolts to the TD-2 heater tool for joining branch saddle fittings to the sidewall of pipe
  • available for both circular and rectangular bases
  • available in IPS sizes 2” through 8” x 2”

SOCKET FUSION MACHINES

SOCKET FUSION MACHINES

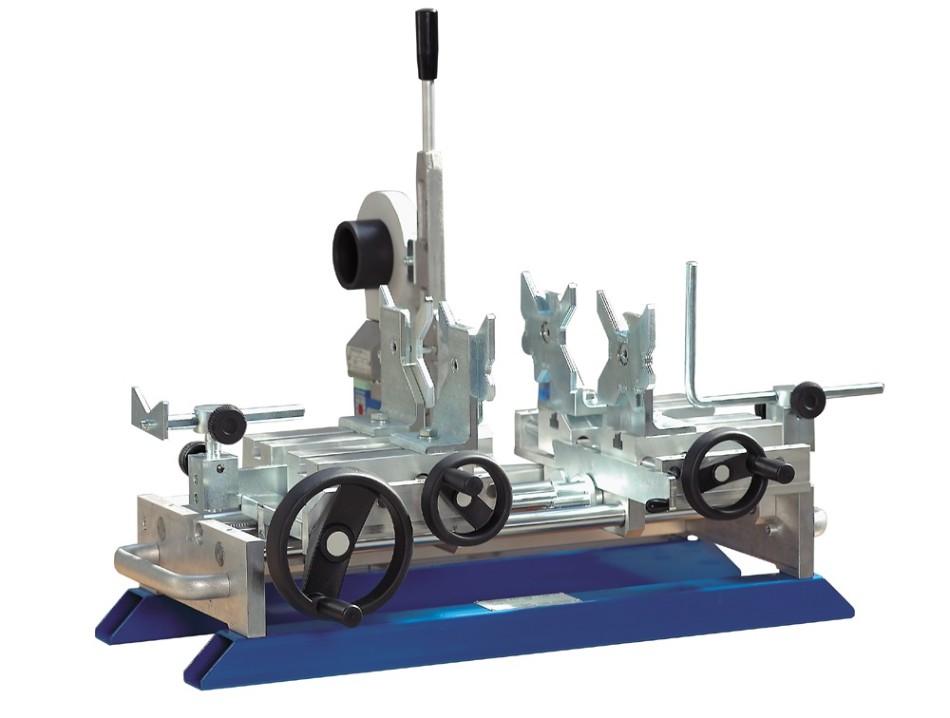

SG 125/160 Socket Fusion Machines

The SG 125/160 are compact and portable socket fusion machines with sturdy base frames and clamping devices to eliminate distortion when joining plastic pipes and fittings. They can be used both in workshops and on job sites.

SG 125

+ Portable heating element – socket fusion machine for use in the workshop and on job sites.

+ For fusion jointing of PP and PE pipes and fittings

+ BASE MACHINE

+ Compact, sturdy design, distortion-free machine bed

+ Handwheel with torque locking mechanism for the slide movement

+ Fast selection of insertion depth according to the pipe dimension

+ HEATER

+ With electronic temperature control

+ High temperature accuracy over the entire heating surface

+ ADDITIONAL STANDARD EQUIPMENT

+ Universal, left and right prismatic clamping devices, complete, for clamping pipe and fittings. Additional set of prismatic clamping devices for outer clamping of pipes available as an option.

+ V-shaped pipe support

+ Back stop

+ Machine specific tool set

+ Timer to clock fusion times

+ Including transport packaging, without accessories

SG 160

+ Portable heating element – socket fusion machine for use in the workshop and on job sites.

+ For fusion jointing of PP and PE pipes and fittings

+ BASE MACHINE

+ Compact, sturdy design, distortion-free machine bed

+ Handwheel with torque locking mechanism for the slide movement

+ Fast selection of insertion depth according to the pipe dimension

+ HEATER

+ With electronic temperature control

+ High temperature accuracy over the entire heating surface

+ ADDITIONAL STANDARD EQUIPMENT

+ Universal, left and right prismatic clamping devices, complete, for clamping pipe and fittings. Additional set of prismatic clamping devices for outer clamping of pipes available as an option.

+ V-shaped pipe support

+ Back stop

+ Machine specific tool set

+ Timer to clock fusion times

+ Including transport packaging, without accessories

SOCKET FUSION TOOLS

SOCKET FUSION TOOLS

Auxiliary Handles

  • attach to TD1A and TD-2 heater tools for more leverage and easier handling

Socket Faces

  • bolt to TD-1A and TD-2 heater tools for fusion socket type couplings and
    fittings
  • coated surfaces are stick-resistant

Depth Gauges

  • for determining fusion depth
  • for pipe sizes ½” CTS through 4” IPS

Chamfering Tools

  • chamfers the outside edge of the pipe end in preparation for socket fusion
  • the chamfer allows heater faces and socket fittings to be easily pushed onto the pipe
  • for pipe sizes 3” and 4” IPS

Combination Chamfering Tool/Depth Gauge

  • chamfers and locates the cold ring the proper distance from the pipe end
  • for pipe sized ½” CTS through 2” IPS

Cold Rings

  • for rounding the pipe end and assuring correct depth engagement of the
    heater face and socket fitting
  • for pipe sizes ½” CTS through 2” IPS
  • clam style available for sizes 1 ¼” through 4” IPS

Socket Fitting Holder

  • provide grip and leverage on a socket fitting

HEATER BAGS

HEATER BAGS

Heater Bags

  • protects hot heater faces from scratches
  • will not burn up to 1000° F (540° C)
  • contains NO ASBESTOS
  • available in three sizes up to 17” x 10 ½” (430mm x 265mm)

Insulated Heater Bags

  • reduces heat loss from cold temperatures and wind
  • padded bottom gives added protection against
  • damage from dragging irons over rough surfaces

X-PANDER SAFETY PLUGS & WRENCHES

X-PANDER SAFETY PLUGS & WRENCHES

X-Pander Pipeline Wrench

  • sizes of plugs may be used with the same wrench
  • length “A” available in 7”, 12” 18” or 24”

X-Pander Double Length Plug

  • for use with plastic pipe
  • available in sizes ¾” through 2”

Standard Type “C” X-Pander Plug

  • for use with plastic pipe
  • available in sizes ¾” through 2”

Bullnose Plugs

  • to aid with insertion of plastic pipe inside steel pipe
  • available in ½” CTS through 2” IPS
Arcless Static Ground

Arcless Static Ground

  • effective in bleeding off the static charge
    which can accumulate on plastic piping and
    isolated metal tools and fittings
  • comes in ½ gallon containers, 4 per carton

NEED HELP ON YOUR NEXT PROJECT?

Find out how Can-Con can help. Contact us today!

SEND US A MESSAGE
